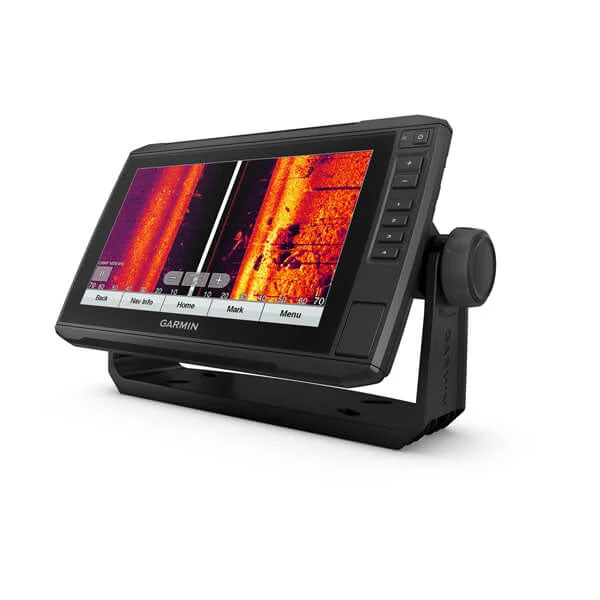

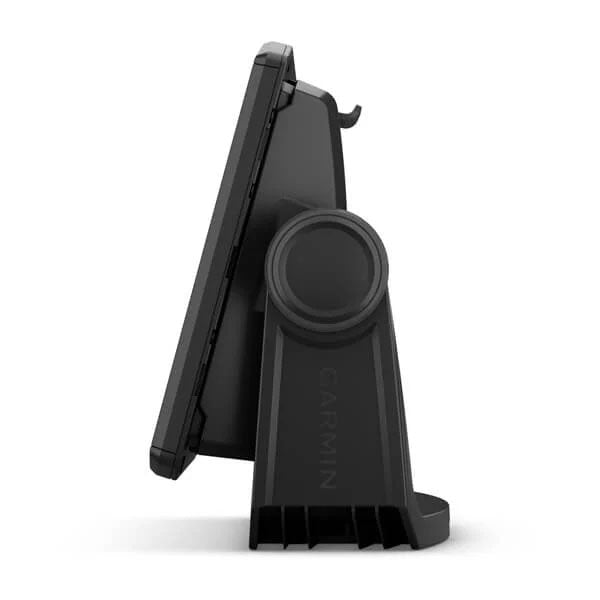

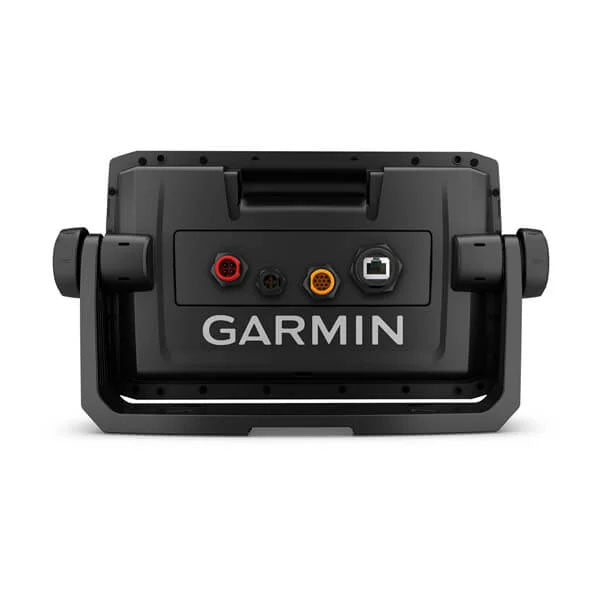

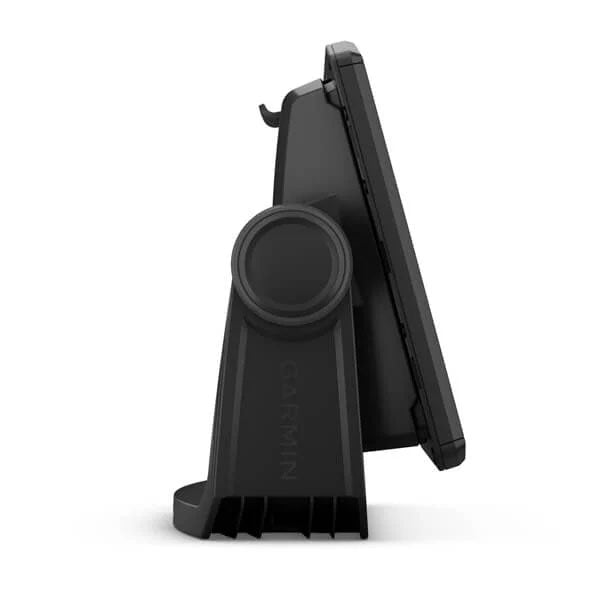

Garmin ECHOMAP UHD 93sv Transducer
-
Detail
ECHOMAP UHD 93sv Transducer
LESS TIME FINDING. MORE TIME FISHING.
The sunlight-readable 9” touchscreen chart plotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.
With the ECHOMAP UHD 93sv Transducer, you can see below and around your boat in incredible detail. Navigate any waters with preloaded LakeVü g3 inland maps and share data and maps with select ECHOMAP devices on your network. Also, manage your marine experience from nearly anywhere and control the most powerful trolling motor available! With the ECHOMAP UHD 93sv Transducer, you can also create your own maps on the fly and tailor them to fit your needs.
✔ TIDE TABLES ✔ GARMIN SONAR COMPATIBLE ✔ SUPPORTS AIS ✔ SUPPORTS DSC ✔ GCV™ BLACK BOX SONAR SUPPORT ✔ ACTIVECAPTAIN COMPATIBLE ✔ DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE ✔ DUAL-BEAM (77/200 KHZ) SONAR CAPABLE ✔ BOTTOM LOCK ✔ WATER TEMPERATURE LOG AND GRAPH ✔ SONAR RECORDING ✔ SONAR HISTORY REWIND ✔ NMEA 2000® COMPATIBLE ✔ WIRELESS CONNECTIVITY ![Garmin ECHOMAP UHD 93sv Transducer]()
ECHOMAP UHD 93sv Specs
- Physical Dimensions: 11.4" x 6.5" x 2.4"
- Display Size: 7.8" x 4.8"; 9" diagonal
- Display Resolution: 400 x 800 pixels
- Display Type: WVGA color
- Weight: 2.3 lbs
- Mounting Options: Bail or flush
- Power Consumption: 18W
- Antenna: Internal or external over NMEA 2000
- Transmit Power: 500 W (RMS) / 4,000 W (peak to peak)
- Receiver: 5 Hz
- Garmin Marine Network Ports: 1 Panoptix™ port
- Preloaded Maps: LakeVü g3 (inland maps)
- Accepts Data Cards: 1 microSD™ card; 32 GB maximum size
- Waypoints: 5,000
- Track Log: 50,000 points; 50 saved tracks
- Routes: 100
- ClearVu: Yes with CHIRP (built-in)
- Maximum Depth: 2,300 ft @ 77 kHz- freshwater, 1,100 ft @ 77 kHz-saltwater (depth capacity is dependent on water bottom type and other water conditions)
- Transducer Pin numbers: 12
- NMEA 0183 Input Ports: 1
- NMEA 0183 Output Ports: 1
ECHOMAP UHD 93sv Features
Transducer Bundle
Bundle that adds a GT56 transducer for Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.
Sonar Support
This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.
Force Trolling Motor Compatibility
Take control of the most powerful and efficient trolling motor available, route it to waypoints, follow tracks and more from the screen of your chartplotter.
ActiveCaptian App
Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw™ Community data and more.
Vivid Color Palettes
High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.
Quickdraw Contours
Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on the Garmin Connect™ app.
Network Capable
If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, the 7” and 9” models can share information — such as sonar, user data and charts — with them.
NMEA 2000 and NMEA 0183 Networks
Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.
Preloaded Mapping
Experience unparalleled coverage and detail with preloaded LakeVü g3 inland maps featuring integrated Navionics® data. Maps cover more than 18,000 lakes with up to 1’ contours
Your Satisfaction with Garmin is Guaranteed:
- 2 Year Limited Warranty
- Free Shipping & No Sales Tax in the U.S.
-
