Renogy RNG-175D-US 175 Watt Monocrystalline Solar Panel New

The Renogy 175 Watt 12 Volt Monocrystalline Solar Panel is a key component to any solar power (PV) system. Whether you take it camping in the mountains or for a trip to the beach, this off-grid panel can be a great start or addition to any Renogy off-grid system. Each Renogy 175W Monocrystalline Solar Panel is capable of withstanding heavy snow and strong wind loads.

• Multi-layered sheet laminations enhance cell performance and ensure a long service life
• EL tested solar modules; no hot-spot heating guaranteed
• Anti-reflective, high transparency, low iron-tempered glass with enhanced stiffness and impact resistance
• TPT back sheet dissipates heat to ensure smooth performance over a long period of time
• Pre-installed corner protector protects you from accidental cuts from the sharp corners and protects solar panel frame from impacts
• Guaranteed positive output tolerance (0-3%); withstands high winds (2400Pa) and snow loads (5400Pa)

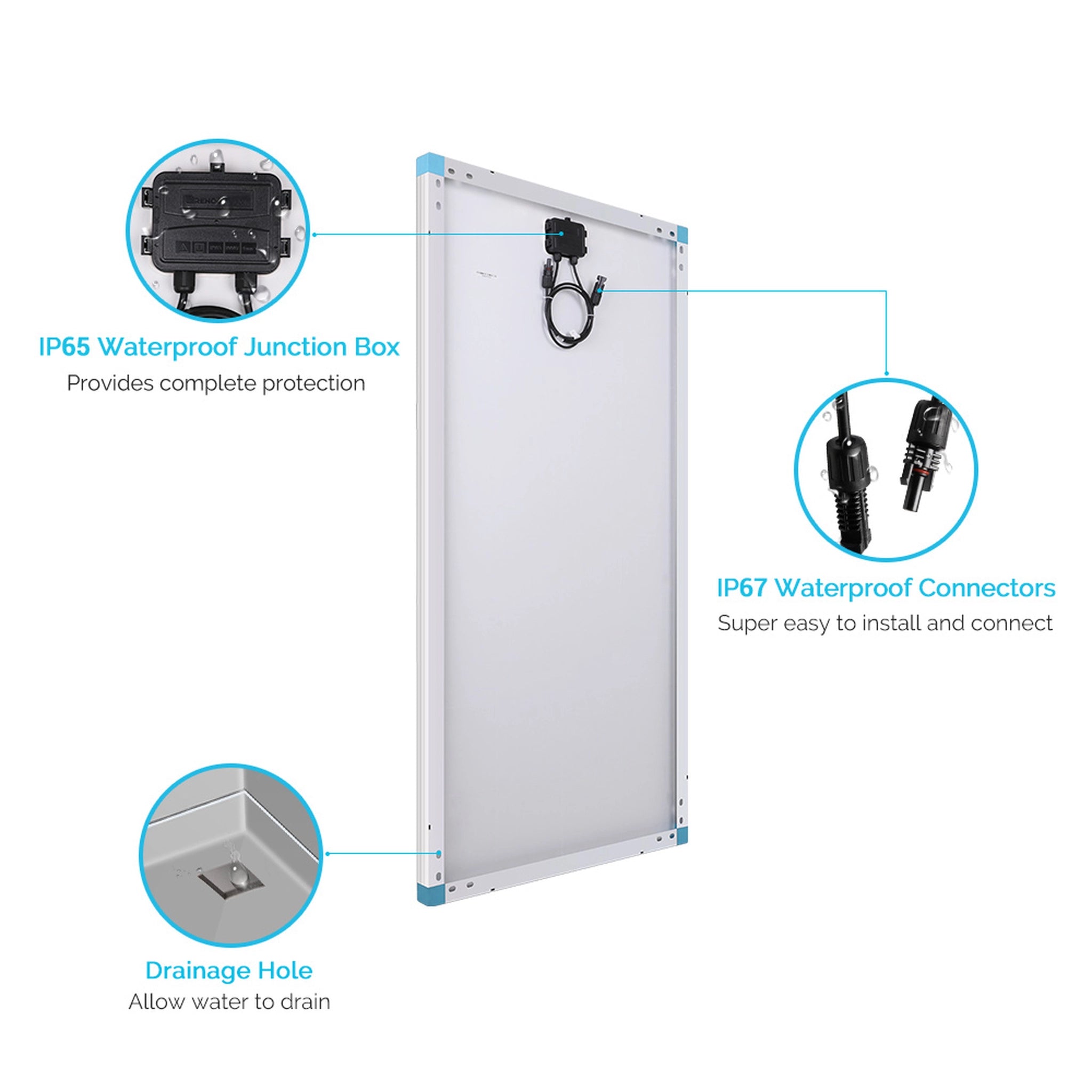

• IP65 rated junction box provides complete protection against environmental particles and low-pressure water jets

• Bypass diodes minimize power drops caused by shade and ensure excellent performance in low-light environments
• A corrosion-resistant aluminum frame allows for extended outdoor use with a typical lifespan of decades
• Can be used for many different applications also ground mount compatible
• Compatible with on-grid and off-grid inverters
• Pre-drilled holes on the back of the panel allow for fast mounting and securing
• Pre-drilled holes are included for grounding
• Compatible with a variety of Renogy mounting systems such as Z-Brackets, Pole Mounts and Tilt Mounts

• Max Power at STC: 175W
• Open Circuit Voltage: 21.6V

• Short Circuit Current: 10.62A
• Optimum Operating Voltage: 18V

• Optimum Operating Current: 9.73A
• Operating Temperature: -40°F to 176°F (-40°C to 80°C)

• Maximum System Voltage: 600VDC UL
• Maximum Series Fuse Rating: 15A

• Cables: 12 AWG 2.3ft long

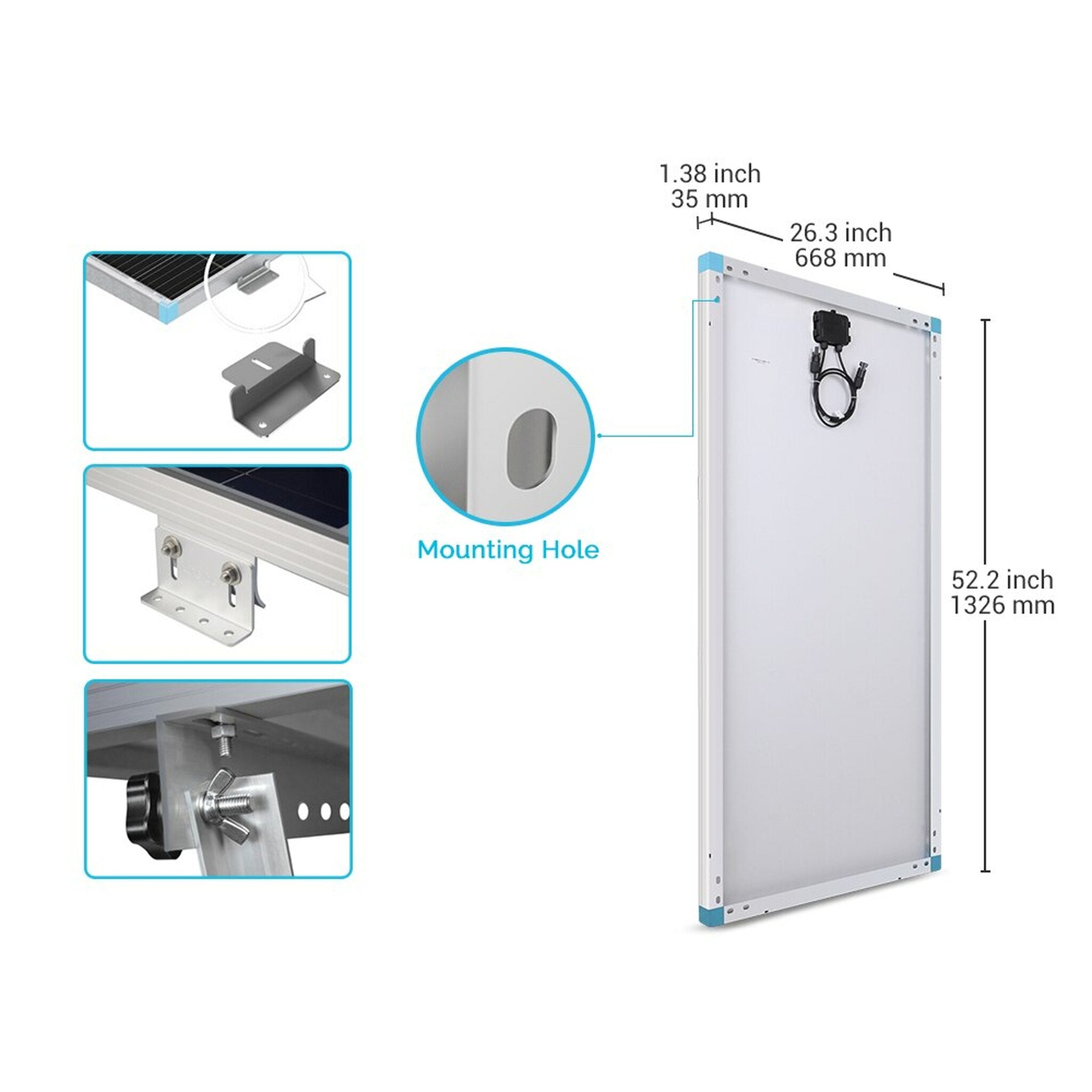

• Dimensions: 52.3 x 26.4 x 1.38 in (1328*670*35mm)
• Weight: 20.9 lbs (9.5Kg)
